VaPura 32 Automated Nucleic Acid Extraction System
Product Description
VaPura 32 is a high-throughput and high-precision automated nucleic acid extraction system used together with prepackaged extraction reagents based on silica-coated superparamagnetic beads to extract and purify nucleic acids from blood, tissue, cells, body fluids, bacteria, viruses, and other biological samples.
The system purifies and enriches nucleic acids by utilizing magnetic rods to capture, transfer, and release magnetic beads. Featuring a highly automated, fast, and simple workflow, VaPura 32 is an ideal solution for molecular diagnosis and animal disease detection.
Features
Simple & Efficient Workflow
Simply add the sample and start the preset program. VaPura 32 performs fully automated nucleic acid extraction with a one-button operation.
High Extraction Efficiency
Recovery rate is higher than 95%, supported by strong magnetic force adsorption of magnetic beads and permanent magnet technology.
Effective Contamination Control
The built-in UV module and filtered fan system help reduce the risk of contamination during operation.
Power Failure Protection
If power is interrupted during operation, the system resumes the extraction process after restart, helping prevent sample loss caused by unexpected power failure.
Parameters
The technical specifications below summarize the key operating parameters of the VaPura 32 automated nucleic acid extraction system.
Parameter | VaPura 32 |
Principle | Magnetic Beads Method |
Sample throughput | 1～32 |
Compatible consumables | 96 deep well plate |
Processing volume /μL | 20～1000 |
Difference between purification repeats | CV≤5% |
Heating temperature | Room temperature～120℃ |
Temperature accuracy | ±1℃ |
Operation interface | 8-inch color touch screen,can be connected to external mouse |
Internal procedures | 500 programs can be stored |
Program management | Add,edit,save as,delete,program mode |
Instrument interface | 3 type A USB,1 Ethernet port,1 DB9 debug interface |
Network | Wi-Fi function |
Disinfection | UV disinfection |
Maximum input power | 500 W |
Dimensions(W×D×H) | 412 mm×410 mm×430 mm |
Weight(kg) | 30 kg |
Storage
Storage: 15–25°C
Transportation: Room temperature
Performance
Workflow

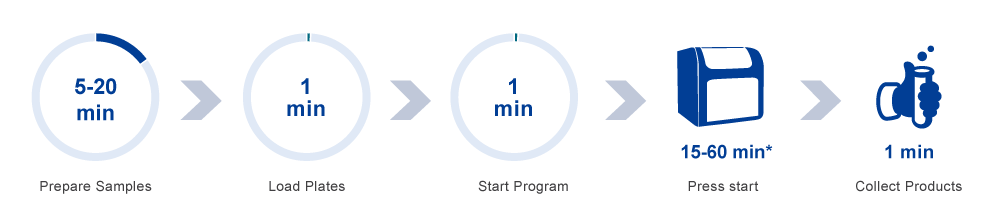

Automated Nucleic Acid Extraction Workflow
VaPura 32 provides a fast, simple, and highly automated workflow for nucleic acid extraction.
Specification
Review the complete technical specifications of our automated nucleic acid extraction systems to identify the model that best aligns with your laboratory throughput and application requirements.
Cat# | VNP-32P | VNP-96P |
Throughput | 1 ~ 32 | 96 |
Test Principle | Magnetic Beads Method | |
Volume | 96-Deep-well Plate: 20 - 1000 μL | 24-Deep-well Plate: 200 - 5000 μL |
Heating Temperature | Room Temperature ~ 120°C | |
Display | Color touch screen can be connected to external mouse | |
Program Management | Add, Edit, Save as, Delete, Program Mode | |
Disinfection | UV Disinfection | |
Maximum Input Power | 500 W | |
Size | 412 mm × 410 mm × 430 mm | 750 mm × 495 mm × 525 mm |
Weight (kg) | 30 kg | 70 kg |
Application
Application

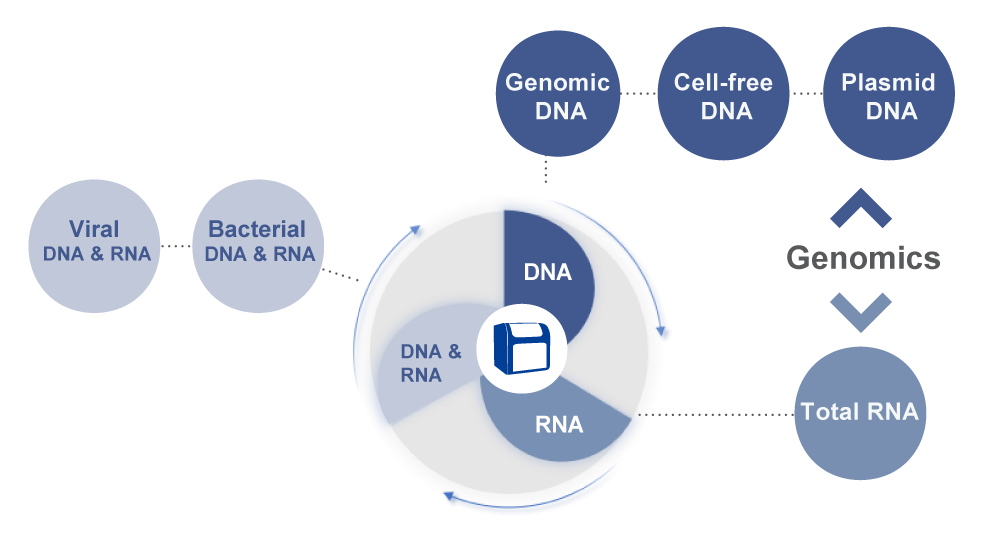

Applications of VaPura 32 Automated Nucleic Acid Extraction System
VaPura 32 is an automated DNA/RNA extraction system designed for efficient nucleic acid purification across genomic DNA, cell-free DNA, plasmid DNA, total RNA, viral DNA/RNA, and bacterial DNA/RNA applications.
Solution
Complete Automated Nucleic Acid Extraction Solution
VaPura 32 provides a complete solution for automated nucleic acid extraction, including instruments, extraction reagents, and dedicated technical support.
Instrument
Choose the appropriate instrument based on your throughput requirements.
Learn More / View Instrument (VaPura 32)
Kits and Consumables
A variety of extraction reagent formats are available, including pre-packaged and bottled reagents.
Browse Kits (Magnetic Bead Kit)
Support
Dedicated instrument specialists are available to support your workflow.
Contact Specialist (Contact us)
Operation Instruction
FAQS
Frequently Asked QuestionsWhat is VaPura 32 used for?VaPura 32 is designed for automated nucleic acid extraction and purification across a broad range of research applications, including genomics, infectious disease research, NIPT projects (cfDNA), plant science, and FFPE tissue analysis and other molecular biological researches.
What sample types are compatible with VaPura 32?VaPura 32 supports blood, animal tissue, cultured cells, plants (leaves, roots, seeds, fruits, fungi), body fluids, swabs, FFPE tissue sections, stool, soil, and other biological samples.
How does the system purify nucleic acids?The VaPura System employs magnetic bead-based extraction technology. Integrated magnetic rods adsorption, transfer, and release magnetic beads through sequential lysis, wash, and elution steps, enabling fully automated nucleic acid purification without the need for pipetting, centrifugation or vacuum manifolds.
What contamination control features does the VaPura 32 include?Yes. VaPura 32 is equipped with an integrated UV decontamination system designed to minimize cross-contamination between runs.
How does VaPura 32 respond to a power interruption?VaPura 32 resumes operation after power is restored, helping avoid sample waste caused by unexpected power failure
